Generation 1, N60

Toyota Hilux Surf 3-door SUV

05.1984 - 04.1989 · Japan

Go to specifications ↓

Open photo ↗

Choose your specification

Generation 1, N60

YN60V, LN60V, LN61V, YN61V, YN61G

Compare the engine, transmission and drive layout. Open a version name for detailed specifications and equipment.

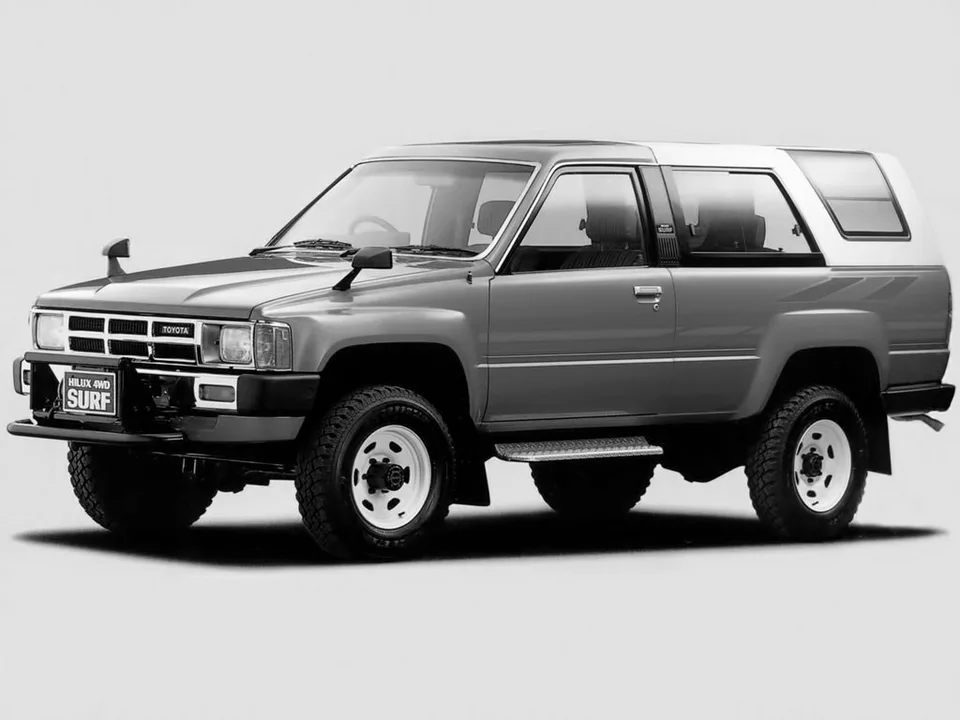

View specifications ↓The photo shows the generation body. The exact vehicle's colour and equipment may differ.

About this generation

Choosing a Toyota Hilux Surf

Toyota Hilux Surf, Generation 1, N60, Japan market. This overview covers 20 recorded trim entries associated with this generation (05.1984 - 04.1989). The same trim name may occur in several production periods.

Compare the engine, transmission and drive layout within a single trim. Ranges below combine the populated records of different versions; they do not replace the specifications of the selected car.

Overview based on recorded specifications: 20 trim entries.

Seats: 5
Engine codes: 2L, 2L-T, 3Y, 3Y-E, 3Y-J
Engine displacement, cc: 1998–2446
Drive layout: All-wheel drive (4WD)
Transmission: Automatic 4, Manual 5
Wheelbase, mm: 2610–2625
Ground clearance, mm: 210
Fuel: Petrol, Diesel

Specifications and technical details

20 versions

2.0 L, 105 hp, petrol, manual transmission, all-wheel drive (4WD)

3Y-J · 5-speed manual · All-wheel drive

Specification	Production period	Compare
2.0 SSRTop grade	05.1984 - 07.1985
2.0 SRBase grade	05.1984 - 07.1985

2.4 L, 83 hp, diesel, manual transmission, all-wheel drive (4WD)

2L · 5-speed manual · All-wheel drive

Specification	Production period	Compare
2.4D SSRTop grade	05.1984 - 07.1985
2.4D SRBase grade	05.1984 - 07.1985

2.4 L, 76 hp, diesel, manual transmission, all-wheel drive (4WD)

2L · 5-speed manual · All-wheel drive

Specification	Production period	Compare
2.4D SSRTop grade	08.1985 - 11.1987
2.4D SRBase grade	08.1985 - 11.1987
2.4D SRBase grade	12.1987 - 04.1989
2.4D SSRTop grade	12.1987 - 04.1989

2.4 L, 85 hp, diesel, manual transmission, all-wheel drive (4WD)

2L-T · 5-speed manual · All-wheel drive

Specification	Production period	Compare
2.4DT SSRTop grade	08.1985 - 11.1987
2.4DT SRBase grade	08.1985 - 11.1987
2.4DT SSRTop grade	12.1987 - 04.1989
2.4DT SSR LimitedTop grade	12.1987 - 04.1989

2.0 L, 88 hp, petrol, manual transmission, all-wheel drive (4WD)

3Y · 5-speed manual · All-wheel drive

Specification	Production period	Compare
2.0 SSRTop grade	08.1985 - 11.1987
2.0 SRBase grade	08.1985 - 11.1987
2.0 SSRTop grade	12.1987 - 04.1989
2.0 SRBase grade	12.1987 - 04.1989

2.0 L, 97 hp, petrol, manual transmission, all-wheel drive (4WD)

3Y-E · 5-speed manual · All-wheel drive

Specification	Production period	Compare
Wagon 2.0 SSRTop grade	12.1987 - 04.1989
Wagon 2.0 SSR LimitedTop grade	12.1987 - 04.1989

2.0 L, 97 hp, petrol, automatic transmission, all-wheel drive (4WD)

3Y-E · 4-speed automatic · All-wheel drive

Specification	Production period	Compare
Wagon 2.0 SSRTop grade	12.1987 - 04.1989
Wagon 2.0 SSR LimitedTop grade	12.1987 - 04.1989
