Toyota RAV4 Crossover / SUV
09.2008 - 04.2010 · Europe
Open photo ↗Generation 3, XA30, facelift
ZSA35, ALA30, ZSA30
Compare the engine, transmission and drive layout. Open a version name for detailed specifications and equipment.

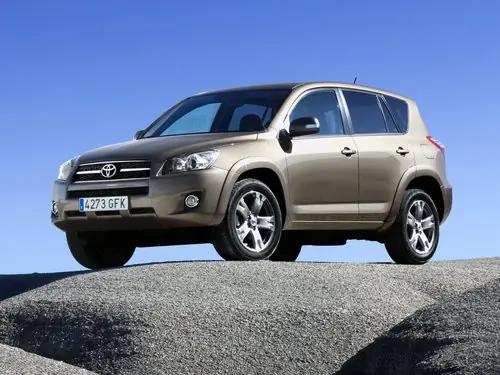

View specifications ↓The photo shows the generation body. The exact vehicle's colour and equipment may differ.Choosing a Toyota RAV4
Toyota RAV4, Generation 3, XA30, facelift, Europe market. This overview covers 10 recorded trim entries associated with this generation (09.2008 - 04.2010). The same trim name may occur in several production periods.
Compare the engine, transmission and drive layout within a single trim. Ranges below combine the populated records of different versions; they do not replace the specifications of the selected car.
Overview based on recorded specifications: 10 trim entries.
- Seats
- 5
- Engine codes
- 2AD-FTV, 3ZR-FAE
- Engine displacement, cc
- 1986–2231
- Drive layout
- Front-wheel drive, All-wheel drive (4WD)
- Transmission
- Automatic 6, CVT, Manual 6
- Wheelbase, mm
- 2560
- Ground clearance, mm
- 182–190
- Fuel
- Petrol AI-95, Diesel
Equipment and practical details
Toyota RAV4 · Generation 3, XA30, facelift · Europe · 09.2008 - 04.2010. These features occur in different versions of this generation. They are not a shared specification for every car: check the selected trim for the equipment you need and how it operates.
- MacPherson front suspension
- For a version with MacPherson front suspension, identify parts by body code and specification. The layout name alone does not establish that struts and springs are interchangeable.
- Rear-view camera
- Check the image when reverse is selected and the area visible near the bumper. A camera does not replace checking around the car.
Generation photographs
11 photosToyota RAV4 · Generation 3, XA30, facelift · Europe · 09.2008 - 04.2010. These photographs represent the generation. Colour, wheels and equipment may differ on the selected trim.
All photographs (11)
Specifications and technical details
10 versions2.0 L, 158 hp, petrol, manual transmission, front-wheel drive
3ZR-FAE · 6-speed manual · Front-wheel drive
| Specification | Production period | Compare |
|---|---|---|
| 2.0 MTBase grade | 01.2009 - 04.2010 | |
| 2.0 MT SolTop grade | 01.2009 - 04.2010 |
2.2 L, 136 hp, diesel, manual transmission, all-wheel drive (4WD)
2AD-FTV · 6-speed manual · All-wheel drive
| Specification | Production period | Compare |
|---|---|---|
| 2.2 D-4D 4WD MTBase grade | 01.2009 - 04.2010 | |
| 2.2 D-4D 4WD MT SolTop grade | 01.2009 - 04.2010 |
2.0 L, 158 hp, petrol, CVT, all-wheel drive (4WD)
3ZR-FAE · CVT · All-wheel drive
| Specification | Production period | Compare |
|---|---|---|
| 2.0 CVT 4WD Sol | 01.2009 - 04.2010 |
2.0 L, 158 hp, petrol, manual transmission, all-wheel drive (4WD)
3ZR-FAE · 6-speed manual · All-wheel drive
| Specification | Production period | Compare |
|---|---|---|
| 2.0 MT 4WD Sol | 01.2009 - 04.2010 |
2.2 L, 136 hp, diesel, automatic transmission, all-wheel drive (4WD)
2AD-FTV · 6-speed automatic · All-wheel drive
| Specification | Production period | Compare |
|---|---|---|
| 2.2 D-4D 4WD AT Executive | 01.2009 - 04.2010 |
2.2 L, 177 hp, diesel, manual transmission, all-wheel drive (4WD)
2AD-FTV · 6-speed manual · All-wheel drive
| Specification | Production period | Compare |
|---|---|---|
| 2.2 D-CAT 4WD MT Executive | 01.2009 - 04.2010 |
2.2 L, 136 hp, diesel, manual transmission, front-wheel drive
2AD-FTV · 6-speed manual · Front-wheel drive
| Specification | Production period | Compare |
|---|---|---|
| 2.2 D-4D MTBase grade | 09.2009 - 04.2010 | |
| 2.2 D-4D MT SolTop grade | 09.2009 - 04.2010 |
